High Precision Custom CNC Machined Aluminum Alloy

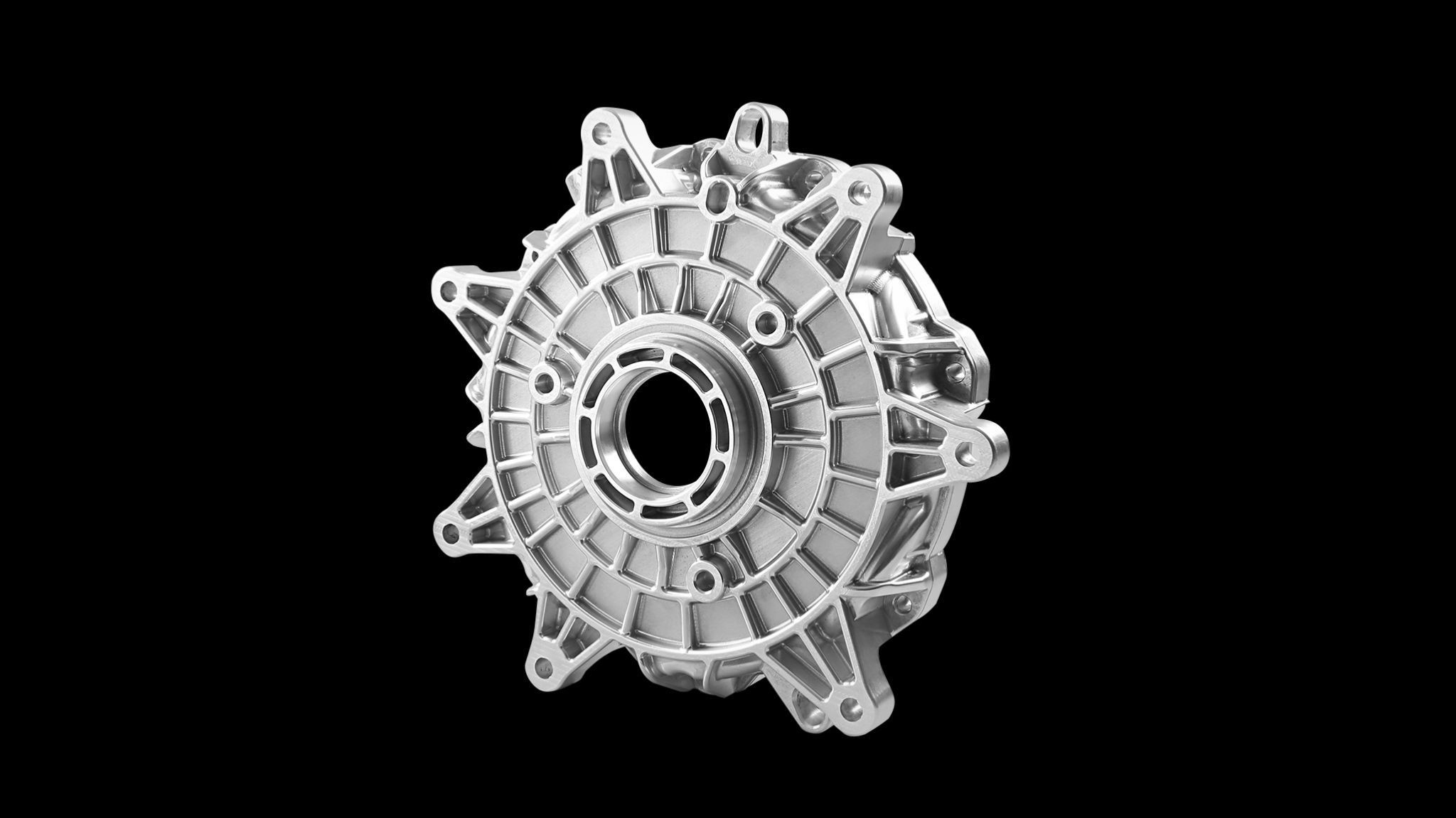

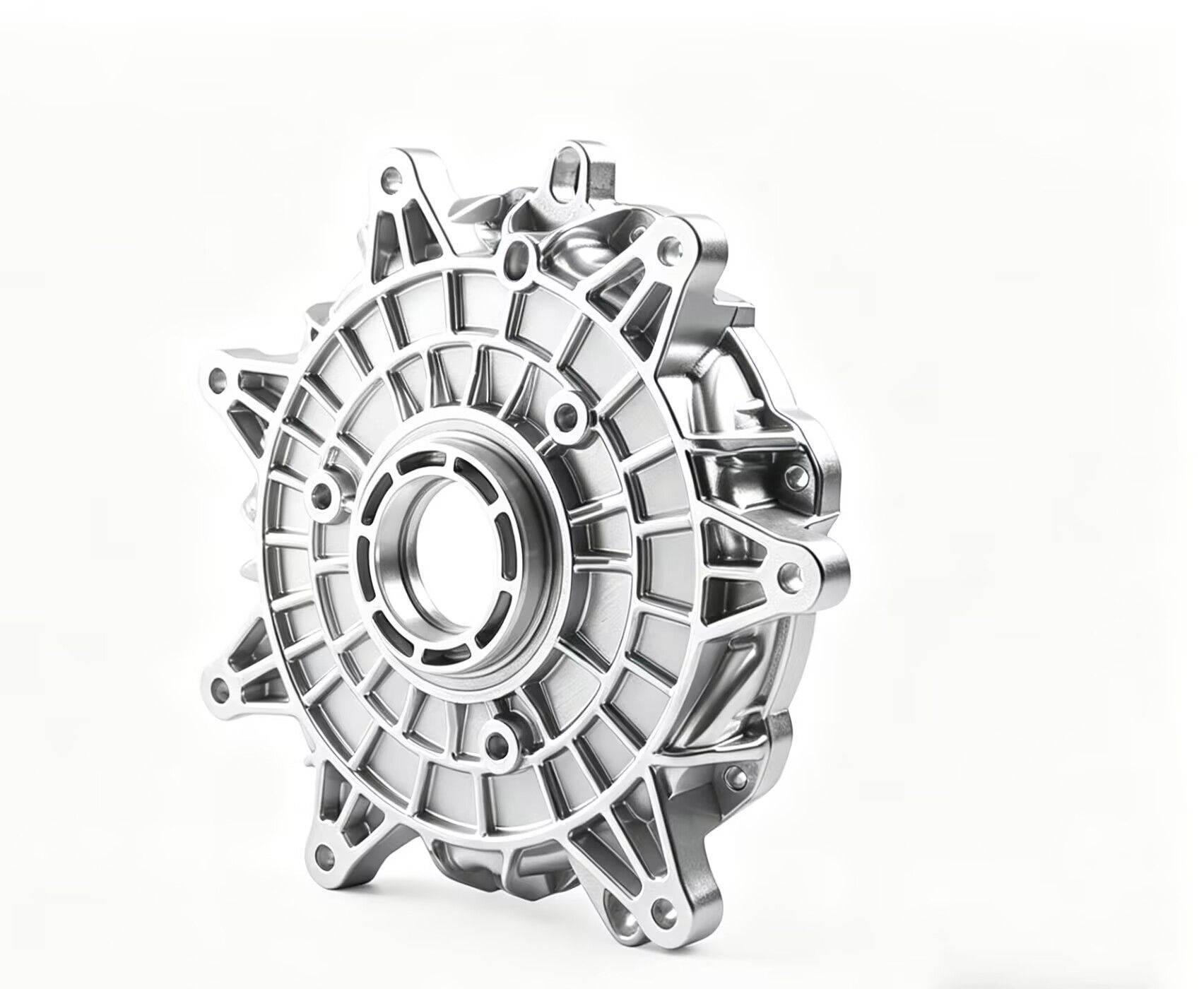

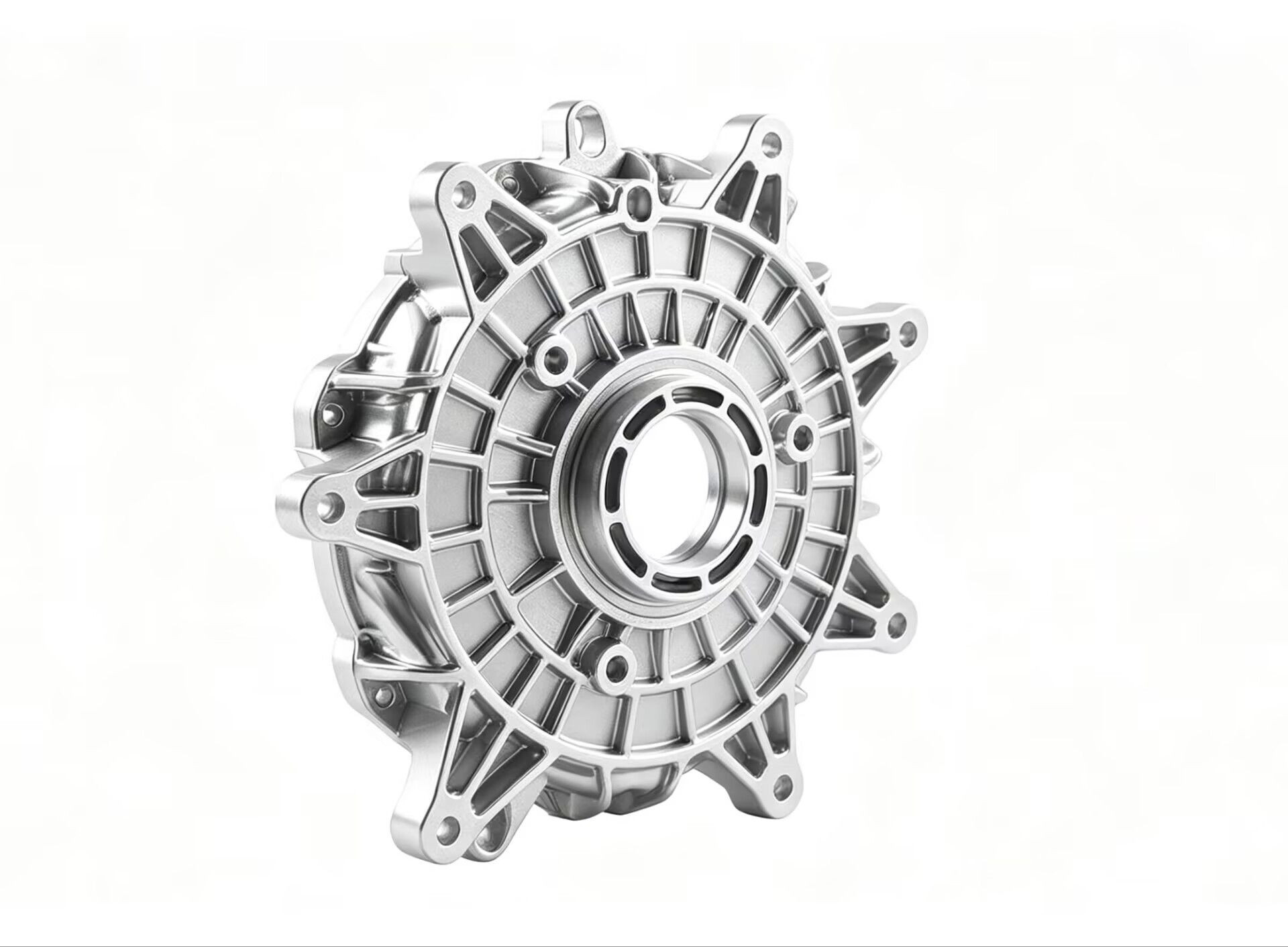

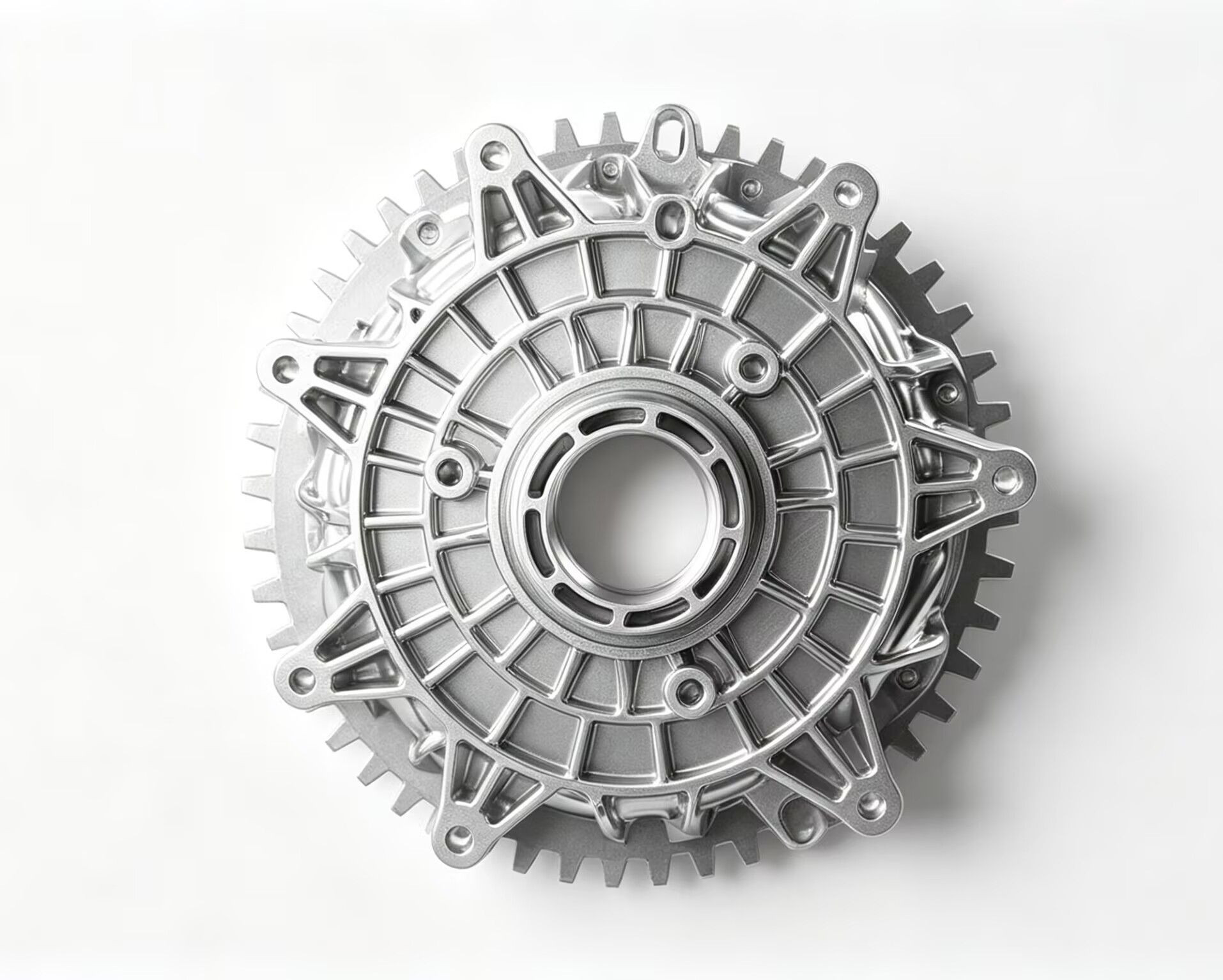

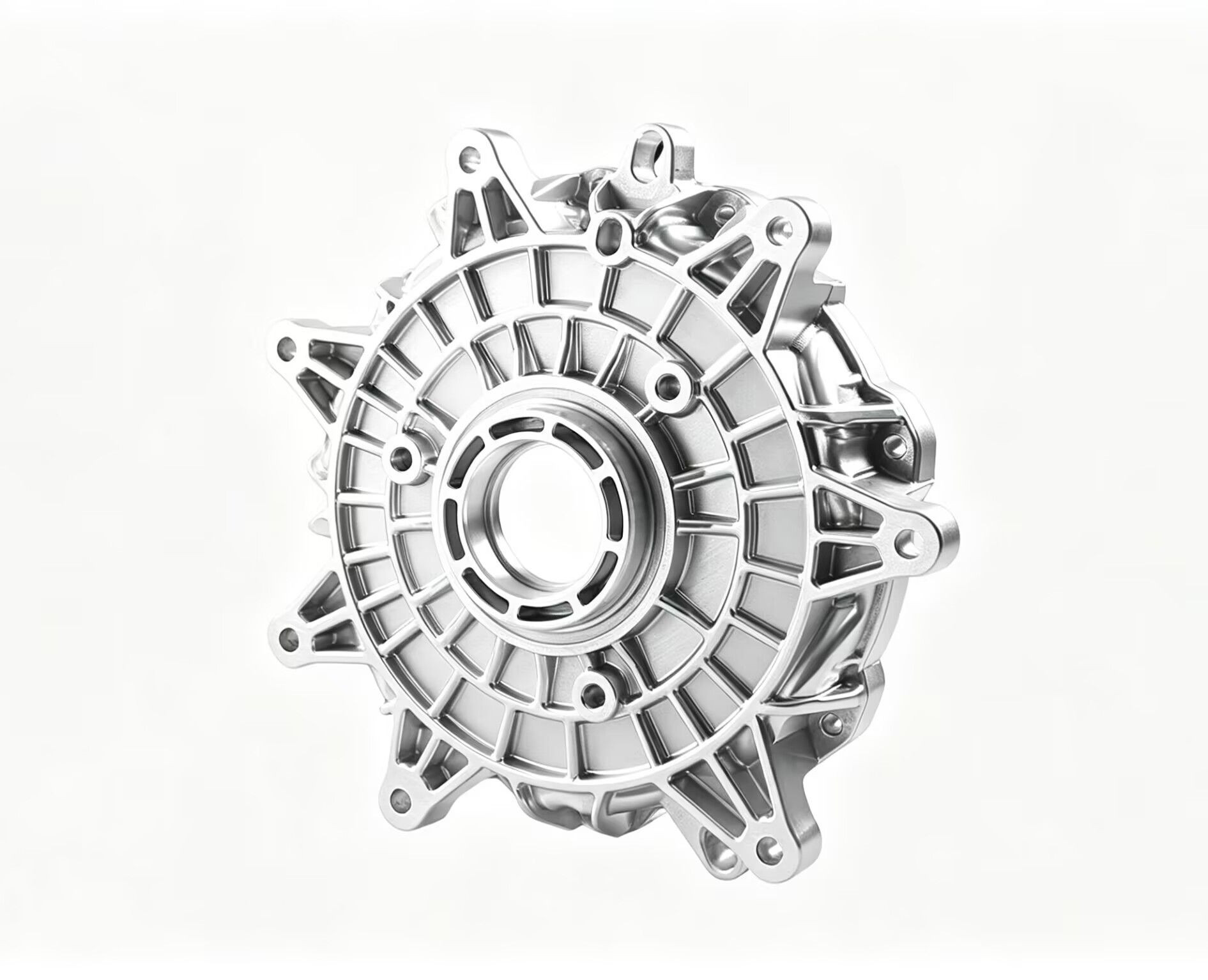

This custom 5-axis CNC machined aluminum alloy motor housing is a high-performance solution designed for demanding applications in electric motors, industrial automation equipment, new energy vehicles, and robotics. Built for lightweight strength, precision fit, and long-term reliability, it is a prime example of our custom precision CNC machining services for complex mechanical components.

🔧 Step-by-Step Machining Process & Craftsmanship

1. Premium Aluminum Alloy Raw Material selection

We start with high-grade 6061-T6 / 7075-T6 aluminum alloy billets, chosen for their exceptional strength-to-weight ratio, excellent thermal conductivity, corrosion resistance, and superior machinability. Each raw material undergoes strict incoming inspection, including material composition verification and defect detection, to eliminate risks before production. This ensures consistency for both prototype parts and high-volume production runs.

2. 5-Axis CNC Machining (Core Forming)

The heart of production uses advanced 5-axis machining centers, allowing us to process the complex rib structure, multi-angle mounting holes, precision bearing seats, and sealing grooves in a single clamping setup. This eliminates repeated alignment errors, ensuring the tight tolerances required for the motor housing’s structural integrity and assembly fit.

3. Secondary Precision Machining Operations

After forming the main housing structure, we proceed with specialized finishing processes tailored to your technical drawings:

- Precision boring and honing of bearing seats to achieve smooth, interference-fit surfaces

- CNC tapping of threaded mounting holes for secure assembly

- Deburring and edge rounding of all sharp corners to prevent stress concentration

- Precision milling of sealing grooves for reliable gasket installation

4. Surface Treatment & Functional Finishing

To enhance performance and durability, we offer a full range of post-machining treatments optimized for motor applications:

- Anodizing (Type II/III) for corrosion resistance and improved wear resistance

- Electrophoretic coating or powder coating for additional environmental protection

- Polishing and passivation to improve thermal dissipation efficiency

Each treatment is applied in-house to meet your functional and cosmetic requirements.

5. Rigorous Quality Control & Inspection

Every precision machined aluminum motor housing undergoes multi-point quality verification:

- Dimensional inspection using CMM (Coordinate Measuring Machine) to verify all critical dimensions against your drawings

- Tolerance checks (±0.01mm / ±0.005mm) for bearing seats, mounting holes, and sealing surfaces

- Surface roughness and flatness testing to ensure optimal fit and performance

We provide full inspection reports for critical orders, ensuring compliance with your quality standards.

✅ Application Scenarios & Key Advantages

Common Applications

- Electric motor and generator housings for industrial automation

- New energy vehicle drive motor components

- Robotics servo motor and actuator enclosures

- High-speed motor housings requiring lightweight, heat-dissipating materials

- Industrial equipment motor end covers and structural components

Core Advantages of Our Custom Machining Service

- Full OEM/ODM Capability: We support custom parts manufacturing from your CAD drawings, samples, or technical specifications.

- Complex Geometry Machining: 5-axis machining capability allows us to produce intricate rib structures, multi-angle features, and complex profiles with unmatched precision.

- Multi-Material Compatibility: Beyond aluminum, we process brass, stainless steel, titanium, and engineering plastics for diverse industrial applications.

- Flexible Order Support: From low-volume prototypes to high-volume production runs, we accommodate orders of all sizes with consistent quality.

- Global Export Packaging: Standard export packaging (anti-static bags + foam protection + cartons/plywood cases) ensures safe delivery worldwide.
